The Iowa Water Heater Installation Code Survival Guide
Why Iowa Water Heater Code Requirements Can’t Be Ignored

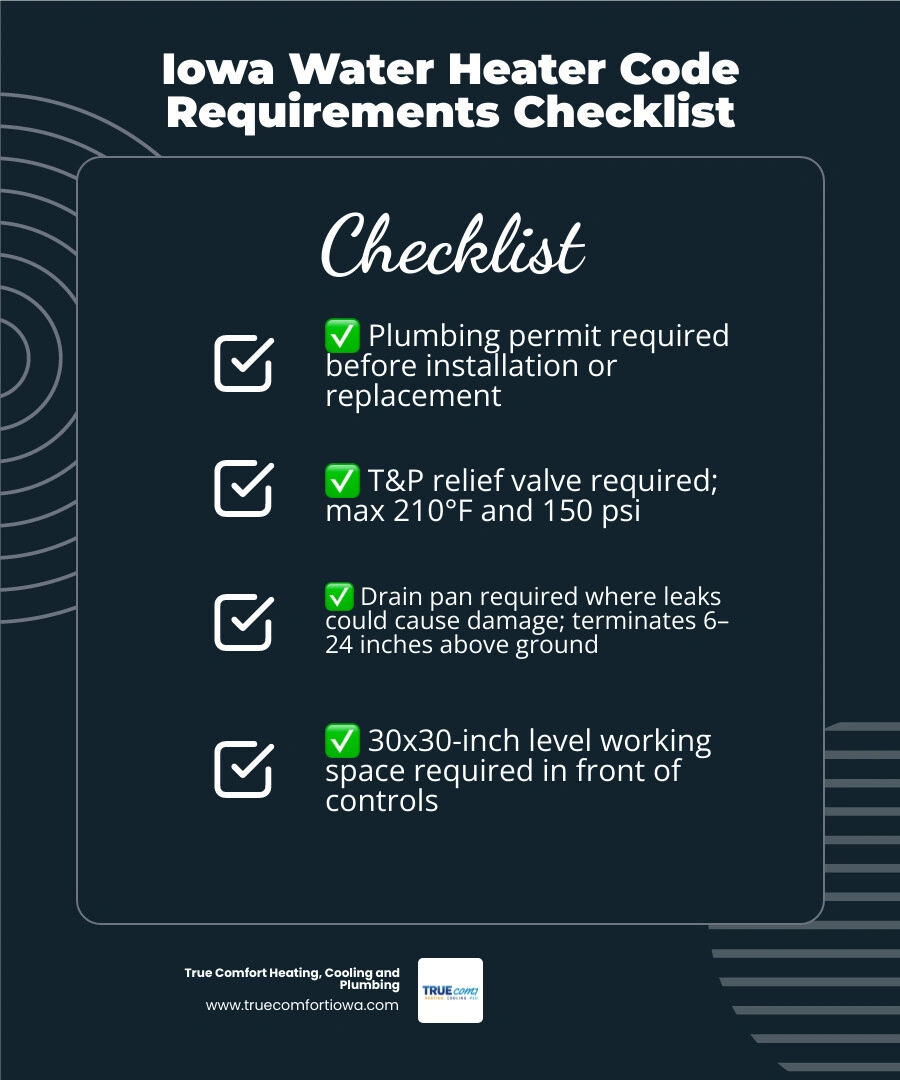

Iowa water heater code requirements cover everything from safety devices and installation locations to permits, venting, and drain pans. Here is a quick overview of what the rules require:
- Adopted Code: Iowa follows the 2024 Uniform Plumbing Code (UPC) with state amendments; cities like Marion also adopt the 2021 International Plumbing Code (IPC)
- Permit Required: Yes, a plumbing permit is required before installation or replacement
- Permit Validity: 24 months from the date of issue
- T&P Relief Valve: Required on all water heaters; maximum setting of 210°F and 150 psi
- Drain Pan: Required where leaks could cause damage; must terminate 6–24 inches above ground if run to the exterior
- Clearance: A 30-inch by 30-inch level working space is required in front of the control side
- Prohibited Locations: Storage closets, air plenums, and unenclosed bedrooms or bathrooms
- Garage Ignition Height: Ignition sources must be at least 18 inches above the floor
- Installer Licensing: Only licensed plumbing contractors or journeymen may perform the work under Iowa law
- Expansion Tank: Required in closed water systems where a backflow preventer is present
A water heater that is installed incorrectly is not just a code problem — it is a safety problem. An improperly installed unit can build dangerous pressure, leak carbon monoxide, or in extreme cases, fail catastrophically. Research shows that a water heater tank can be launched over 100 feet in the air if the right safety devices are missing or bypassed.
For Iowa homeowners, navigating the layers of state code, local amendments, and safety standards can feel overwhelming. This guide breaks it all down in plain language so you know exactly what is required — and what is at stake if those requirements are not met.
Understanding the Iowa Water Heater Code Requirements and Local Amendments
When we talk about iowa water heater code requirements, we are actually looking at a few different rulebooks that work together. As of May 2026, the State of Iowa has officially transitioned to the 2024 Edition of the Uniform Plumbing Code (UPC.) This serves as the “base recipe” for safety across the state. However, individual cities can add their own “special seasoning” through local amendments.
For instance, the City of Marion, Iowa, adopts the 2021 International Plumbing Code (IPC) alongside the State of Iowa Plumbing Code. This can be a bit confusing for homeowners! While the UPC is the state standard, Marion uses the IPC 2021 and the 2021 International Fuel Gas Code to regulate things like gas piping and venting.
The “Authority Having Jurisdiction” (usually your local building official or inspector) is the person who has the final say.
They ensure that every Water Heater Code Compliance check is met before a project is signed off. At True Comfort, we stay on top of these shifting regulations so you don’t have to spend your weekend reading legal documents.
Specific Iowa Water Heater Code Requirements for Marion Residents
If you live in Marion, there are a few administrative rules you need to know. First, a plumbing permit is mandatory. You can’t just swap out a tank and call it a day. The permit ensures that an inspector will come out to verify the work is safe.
In Marion, a plumbing permit remains valid for 24 months from the date it is issued. This is quite generous, as it allows for longer construction schedules if needed. However, if the work doesn’t meet the standards in Table P-1 (the local fee and requirement schedule), you could face delays. Furthermore, the Marion Water Department oversees cross-connection control. This means they want to make sure your water heater doesn’t allow “bad” water to flow back into the city’s clean water supply.
Are seismic supports required for Iowa water heater code requirements?
You might have seen “seismic strapping” on water heaters in movies or while visiting relatives in California. In Iowa, the risk of a major earthquake is significantly lower.
Generally, the iowa water heater code requirements do not mandate heavy-duty seismic strapping for standard residential installations in our service areas like Ankeny or Waukee.
However, tank stability is still a priority. Every water heater must be installed in a way that it won’t tip over. While we don’t usually deal with “the big one” here in the Midwest, a water heater full of 50 gallons of hot water is heavy and dangerous if it shifts. We ensure every unit is level and securely positioned on a base capable of supporting its full weight.
Safety Device Standards: T&P Valves, Expansion Tanks, and Drain Pans
The most critical safety component on your water heater is the Temperature and Pressure (T&P) relief valve. Think of this as the “emergency exit” for steam. If your thermostat fails and the water keeps heating, the pressure could turn your water heater into a rocket.
The T&P valve must be set to trip at a maximum of 210°F or 150 psi. The discharge pipe connected to this valve has its own strict rules:
- It must be rigid pipe (no flexible hoses).
- It cannot be smaller than the valve outlet.
- It must flow by gravity (no “traps” where water can sit).
- It must terminate no more than 6 inches above the floor or waste receptor.
A Hot Water Heater Leaks Complete Guide would tell you that these valves are your first line of defense against disaster. Additionally, bottom-fed water heaters require a vacuum relief valve to prevent the tank from collapsing if a siphon occurs.
Expansion Tank Sizing
In many Iowa cities, including Des Moines and West Des Moines, we have “closed” water systems. This usually means there is a backflow preventer or a check valve on your water meter. When water heats up, it expands.
In a closed system, that extra volume has nowhere to go, which puts stress on your pipes. That is where an expansion tank comes in.
| System Volume (Gallons) | Required Expansion Tank Size (Gallons) |
|---|---|
| Up to 50 Gallons | 2.0 Gallons |
| 50 to 100 Gallons | 4.0 – 5.0 Gallons |
| Over 100 Gallons | Sized by Engineer/Professional |
Detailed Pan Drain and Termination Rules
If your water heater is located in an attic, a second-floor closet, or any place where a leak would ruin your drywall or floors, a safety pan is mandatory. According to iowa water heater code requirements, these pans must be made of specific materials:
- Galvanized Steel: At least 0.0236 inches thick.
- Plastic: At least 0.036 inches thick (and must meet flame-spread ratings).
- Aluminum: At least 0.0236 inches thick.
The drain line for this pan is where people often get it wrong. In Marion and many other local jurisdictions, the pan drain must terminate between 6 and 24 inches above the adjacent ground surface if it runs to the exterior. It can also terminate over an indirect waste receptor or a floor drain.
There is a small “grandfather clause” here: if you are replacing a water heater in a location where no pan existed previously and it’s not technically feasible to install a drain, the inspector might grant an exception. However, we always recommend a pan whenever possible — it’s much cheaper than a new ceiling!
Installation Location and Clearance Standards
Where you put your water heater matters just as much as how you hook it up. The code is very strict about “prohibited locations.” You cannot install a fuel-fired water heater in:
- Storage Closets: It’s too easy for a stray coat or box to lean against the vent and start a fire.
- Air Plenums: You don’t want the water heater’s combustion air mixing with the air you breathe.
- Unenclosed Bedrooms or Bathrooms: Unless the unit is “direct-vent” (meaning it gets its air from outside), it cannot be in a room where someone sleeps or bathes due to carbon monoxide risks.
When we are Preparing Home Water Heater Installation in a garage, we have to follow the 18-inch rule. Because gasoline vapors are heavier than air and settle near the floor, any ignition source (like a pilot light or electric element) must be at least 18 inches off the ground.
Attic and Maintenance Access Requirements
If your water heater is tucked away in an attic, the code ensures that a technician can actually get to it without performing acrobatics. The requirements include:
- Working Space: A level space at least 30 inches wide and 30 inches deep in front of the controls.
- Passageway: A continuous solid flooring path at least 24 inches wide.
- Dimensions: The path must be at least 30 inches high and 22 inches wide.
- Distance: The unit cannot be more than 20 feet from the attic access opening.
Following these rules makes our job easier during a Water Heater Replacement Guide visit, but more importantly, it ensures your home is safe and compliant.
Venting and Combustion Air for Gas Systems
Gas water heaters are like people — they need to breathe! Proper venting is the only thing standing between your family and carbon monoxide poisoning.
One unique aspect of iowa water heater code requirements relates to our cold winters.
In areas where the outside design temperature is 0°F or less (which is all of Central Iowa), vent extensions through a roof or wall must be at least 3 inches in diameter to prevent “frost closure.” If a 2-inch vent gets hit with moist exhaust in -10°F weather, it can freeze shut, sending CO back into your home.
Other venting must-haves include:
- Slope: Vent connectors must slope upward at least 1/4 inch per foot.
- Sediment Traps: A “drip leg” or sediment trap must be installed on the gas line to catch debris before it enters the gas valve. This is a common point of failure in Steps Before a Water Heater Replacement inspections.
- Clearance: Single-wall vents generally need 6 inches of clearance from combustibles, while double-wall “B-vents” only need 1 inch.
Frequently Asked Questions about Iowa Water Heater Code Requirements
Do I need a permit for water heater replacement in Marion, Iowa?
Yes, absolutely. Whether you are in Marion, Des Moines, or Waukee, a permit is required for a water heater replacement. The building official uses this permit to trigger an inspection. Some homeowners try to skip this to save a few dollars, but it often backfires. When you go to sell your home, a home inspector will look for that permit. If it’s missing, you might have to pay for the permit and a potentially expensive “after-the-fact” inspection. It’s much better to Schedule Water Heater Replacement with a pro who handles the paperwork for you.
What are the penalties for water heater code violations?
If an inspector finds a violation, they will issue a correction order. In serious cases, they can “red-tag” the unit, meaning the gas or water must be shut off until the issue is fixed. Beyond the city fines, there are property insurance implications. If an unpermitted, non-compliant water heater causes a fire or flood, your insurance company may have grounds to deny the claim.
That is a very expensive way to learn about code compliance!
Who is legally allowed to install a water heater in Iowa?
In the State of Iowa, plumbing work must be performed by a licensed plumbing contractor or a licensed journeyman under the supervision of a contractor. The Iowa Department of Public Health oversees these licenses. While some homeowners are allowed to work on their own primary residence, we strongly discourage it. Between gas lines, high-voltage electricity, and venting requirements, the margin for error is zero. We take pride in How We Handle Water Heater Installation because we know our team has the training and the licenses to do it right the first time.
Conclusion
Navigating iowa water heater code requirements is about more than just checking boxes for the city inspector. It’s about ensuring that the system providing your morning shower isn’t a hidden danger in your basement. From the 18-inch ignition height in your garage to the specific frost protection on your roof vent, every rule is there to protect your family and your investment.
